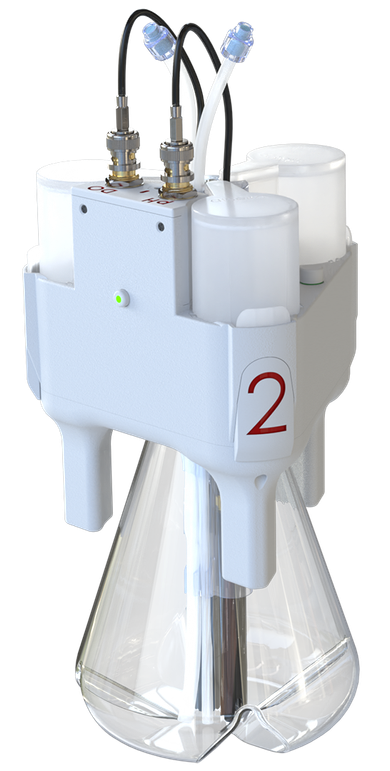

The ShakeReactor is a wireless and battery-powered bioreactor for standard shake flasks, featuring three programmable pumps, along with monitoring of pH, dissolved oxygen, ambient humidity and temperature. Using pre-sterilized,
single-use sensor modules and liquid reservoirs, it ensures sterility with every setup, which makes it perfectly suited for cell cultivation.
The ShakeReactor can be used by anyone - its intuitive design makes it easy to learn, and setup takes less than 10 minutes - just click everything into place, and turn your flasks into bioreactors.
The sensor is equipped with 2 probes (pH & DO), 3 large filters for passive aeration, and 2 tubes for sampling and inoculation. It is compatible with 500 mL and 1000 mL Corning flasks, both baffled and unbaffled.
Accuracy of ±0.03 pH and ±0.3 O2 mg/L
Measuring range of 2-10 pH and 0-20 O2 mg/L
Filter area of 1200 mm² with 0.20 µm pore size
Sampling ports with luer lock for needle-free sampling and inoculation
.png?etag=%22112f04-6762b12c%22&sourceContentType=image%2Fpng&ignoreAspectRatio&resize=920%2B711&extract=0%2B0%2B920%2B71)
%20(2).png?etag=%222fdb76-67629fa2%22&sourceContentType=image%2Fpng&ignoreAspectRatio&resize=1264%2B711&extract=393%2B145%2B503%2B557)
.png?etag=%22112f04-6762b12c%22&sourceContentType=image%2Fpng&ignoreAspectRatio&resize=920%2B711&extract=0%2B71%2B752%2B559)
Dispensing is performed from single-use containers directly into the flask.
The containers can hold up to 3x 50 mL of liquid, including viscous solutions and strong acids or bases. Dispensing is based on volume displacement (similar to a syringe), ensuring accuracy and reliability. The ShakeReactor is equipped with a fill sensor that measures the container fill level, automatically calibrates, and primes each container before dispensing.
%20(1).png?etag=%223f76d0-6762c7c2%22&sourceContentType=image%2Fpng&ignoreAspectRatio&resize=425%2B708&extract=0%2B48%2B425%2B24){kind=small}
.png?etag=%22112f04-6762b12c%22&sourceContentType=image%2Fpng&ignoreAspectRatio&resize=920%2B711&extract=0%2B630%2B752%2B81)
The BioHub manages all communication with your ShakeReactor. A single BioHub can connect to multiple ShakeReactors, and data is streamed directly to you.
%20(1).png?etag=%223f76d0-6762c7c2%22&sourceContentType=image%2Fpng&ignoreAspectRatio&resize=425%2B708&extract=0%2B72%2B425%2B530)
Set up experiments with your own custom recipes.
